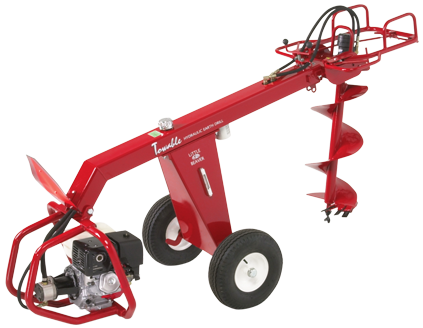

Towable Hydraulic Earth Drills
- Powerful, reliable, safe
- Forward and reverse auger rotation
- Accepts 36″ or 42″ auger lengths
- Sign erection
Power… Versatility… Dependablity
Little Beaver’s towable, hydraulic earth drill certainly has all of that…and more. When we designed the HYD-TB11H, we weren’t interested in developing an ordinary, “me too” machine. Our goal was to design a towable, hydraulic earth drill that was clearly superior to any competitive offering currently on the market. And that’s exactly what we did.

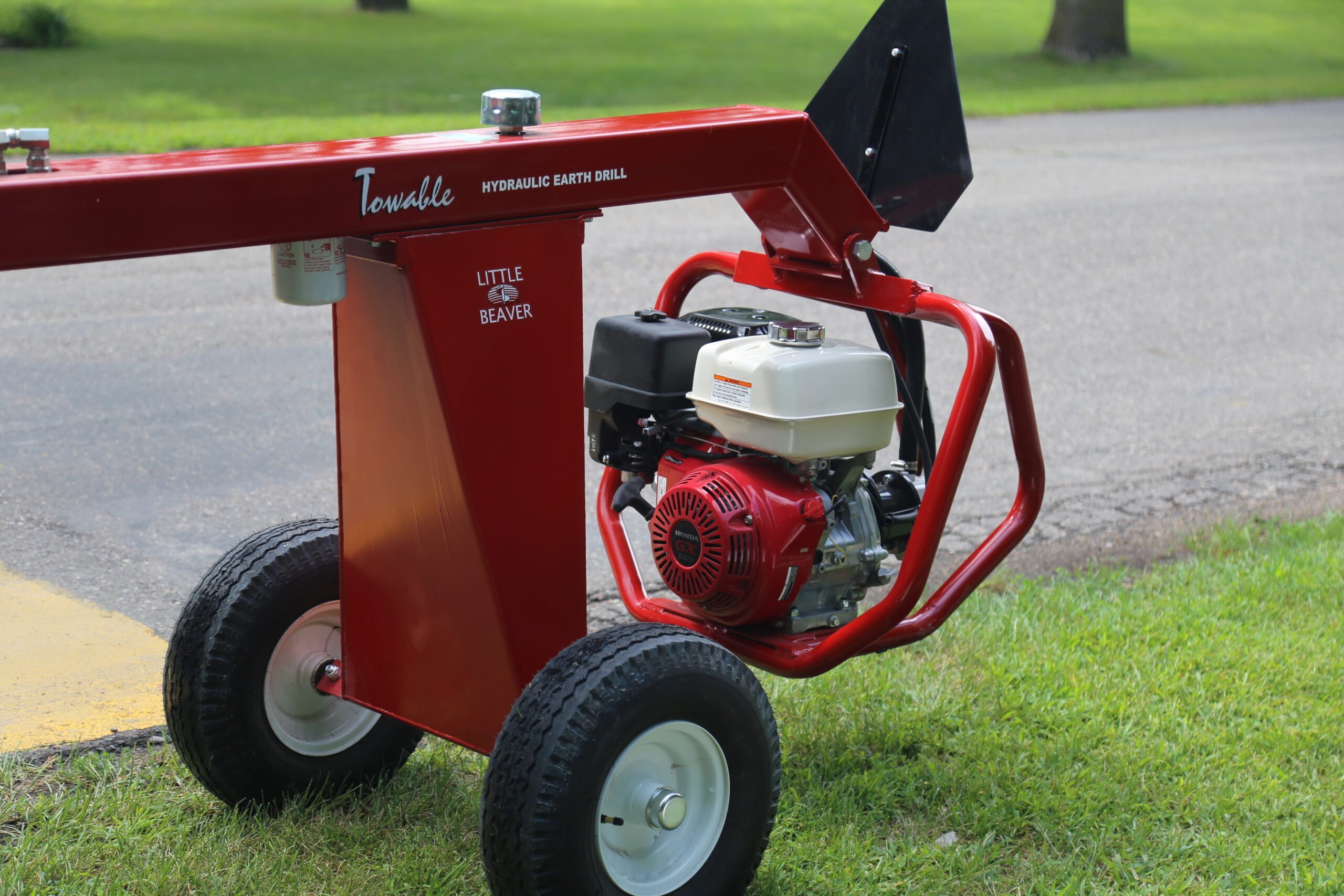

We started with an 11 HP Honda engine. Then, we added a hydraulic system that’s second to none. This powerful combo generates up to 262 ft. lbs. of torque, letting you easily drill holes up to 16″ in diameter.

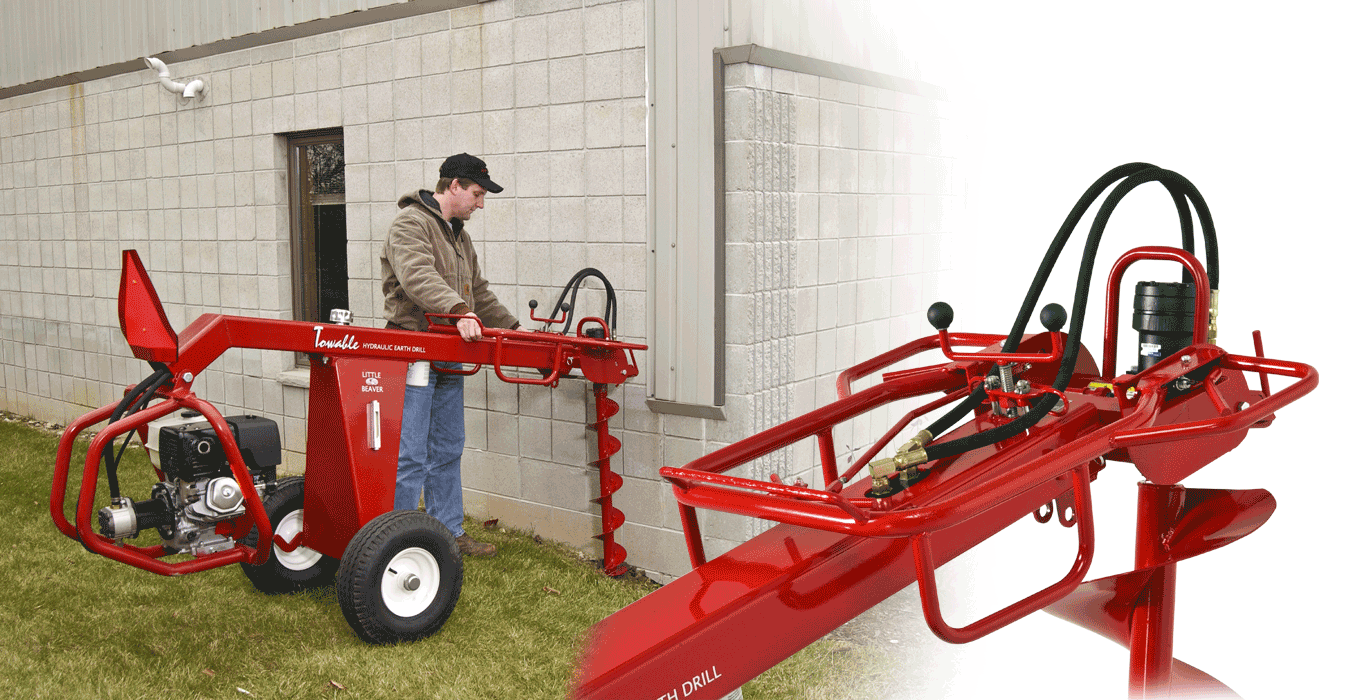

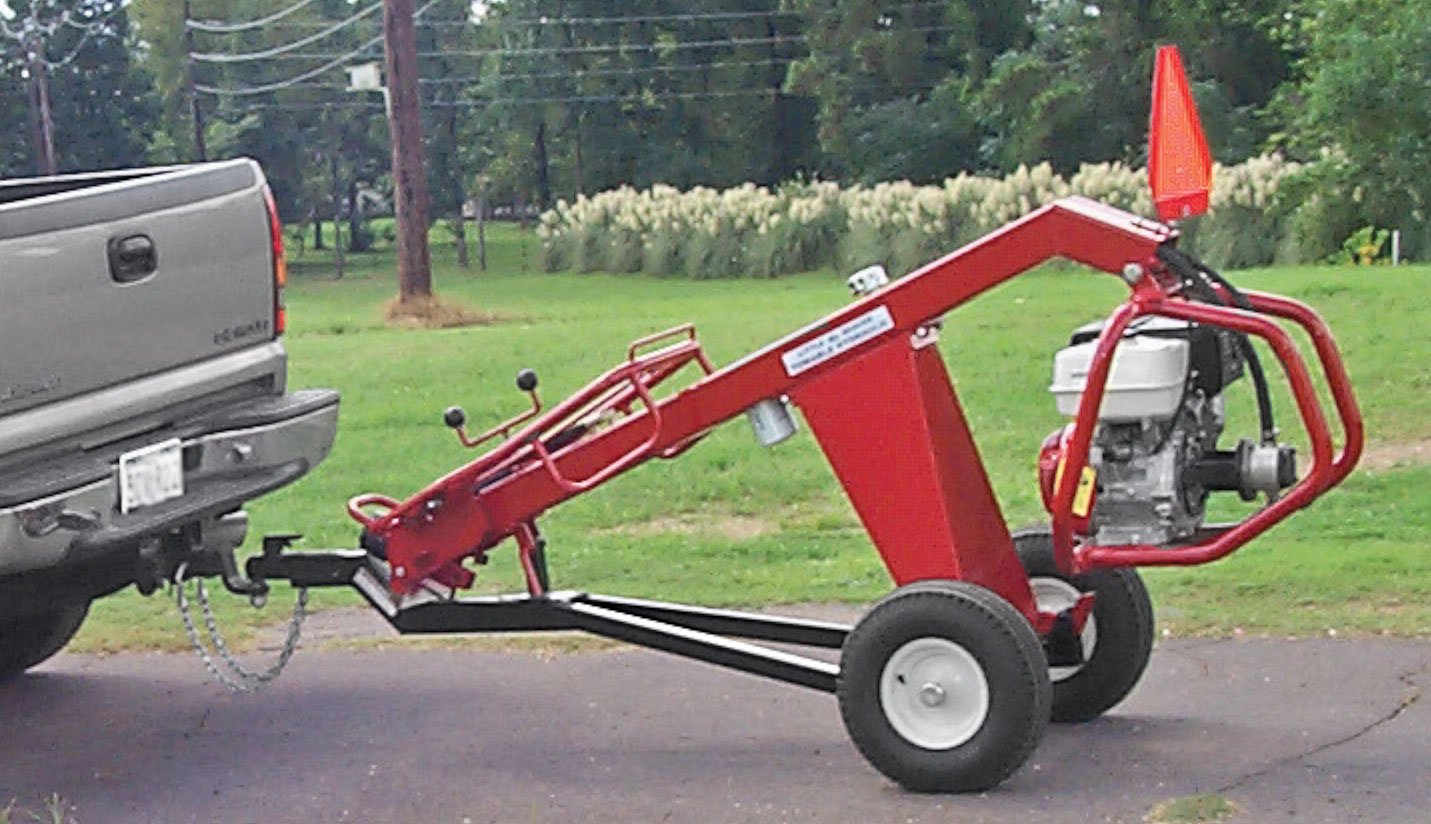

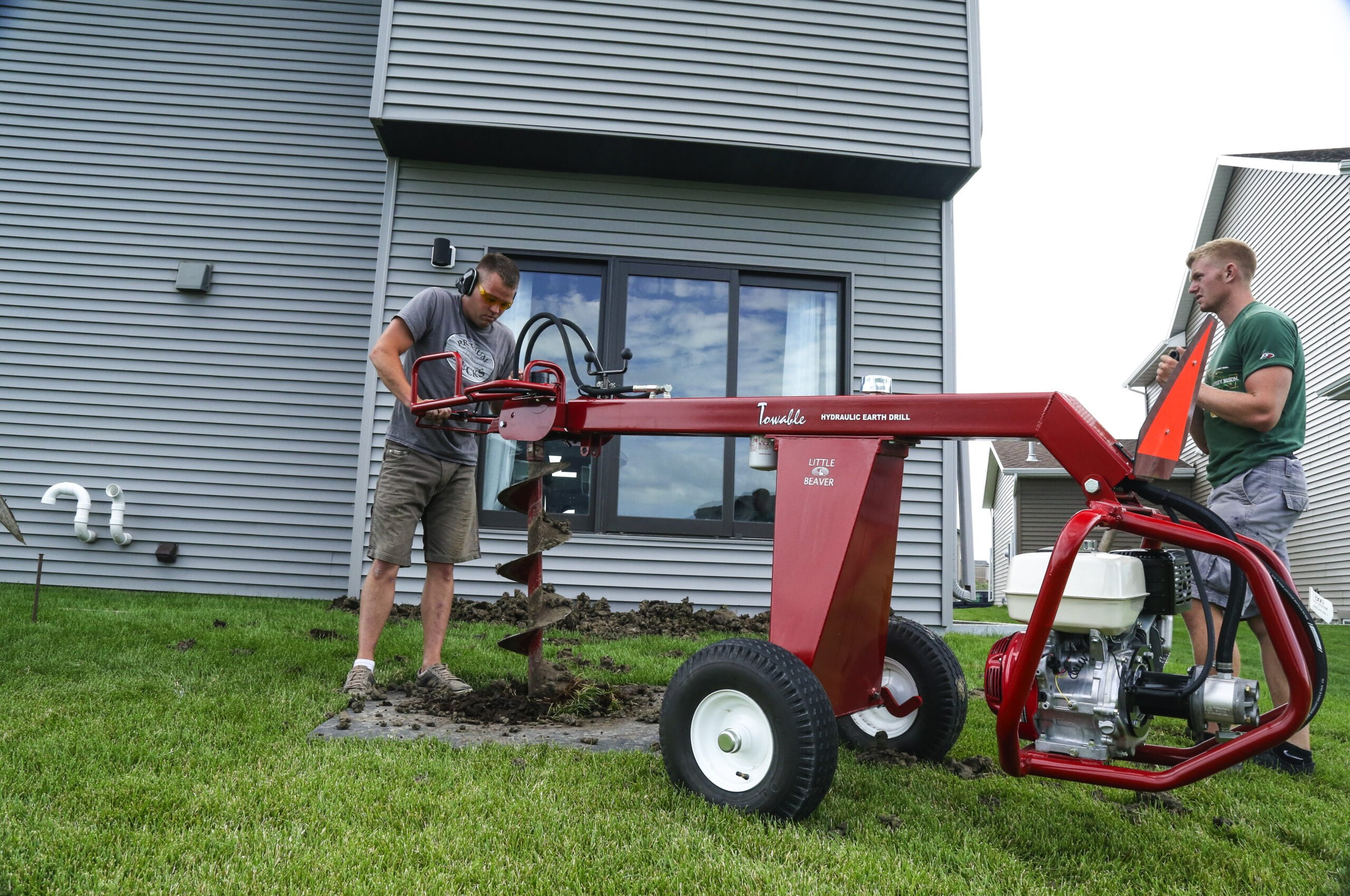

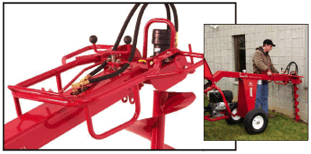

The HYD-TB11H features convenient forward and reverse auger rotation and a two-position handle that permits drilling right next to buildings or other structures. An infinitely variable 20 degree auger tilt allows vertical drilling in uneven terrain, while our removable “no tools” tow hitch offers easy highway transport.
The HYD-TB11H is built to last – welded steel plate and tube construction provide extra long life. By combining an inlet suction strainer with a 10 micron return filter, the hydraulic system is kept clean of contaminants. And the entire machine is backed by a one year, limited warranty.
Convenient Features Make Your Job Easier
An auger lock makes it easy to maneuver the HYD-TB11H around the job site.
A large, 6.5-gallon hydraulic reservoir features a convenient sight gauge and a 10 micron return filter.
The HYD-TB11H accepts all Little Beaver augers (standard, carbide, and rock), utilizing the same secure and simple snap button connection. Either 36″ or 42″ augers can be used.
|Brand / Model||Honda GX340|
|Power @ 3600 rpm||10.7 HP Net|
|Fuel Tank Capacity||1.6 US gallons|
|Oil Alert System||Std.|
|Forward / Reverse||Std.|
|Max. Auger Speed||150 rpm|
|Max. Auger Torque||300 ft*lbs|
|Maximum Flow (gpm)||6|
|Hydraulic Pressure (psi)||2700|
|Reservoir Capacity||6.5 US gallons|
|Oil Cooler w/ Fan||N/A|
|Return Filter||10 micron|
|Inlet Suction Strainer||100 US mesh|
|Oil Level Indicator||Sight Gauge|
|Construction||Welded structural steel tubing and plate|
|Auger Tilt||20 degrees each direction|
|Auger Vertical Lock||Std.|
|Auger Transport Lock||Std.|
|Overall Length (inches)||106|
|Length (inches)||93 with handle folded|
|Dry Weight (lbs.)|
