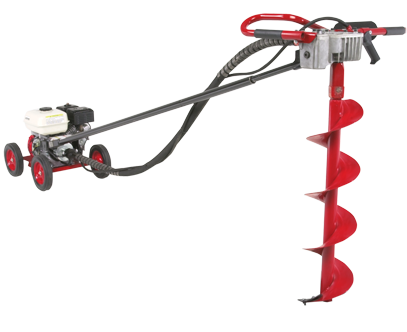

Mechanical Earth Drills

Mechanical Earth Drill Homeowner Use

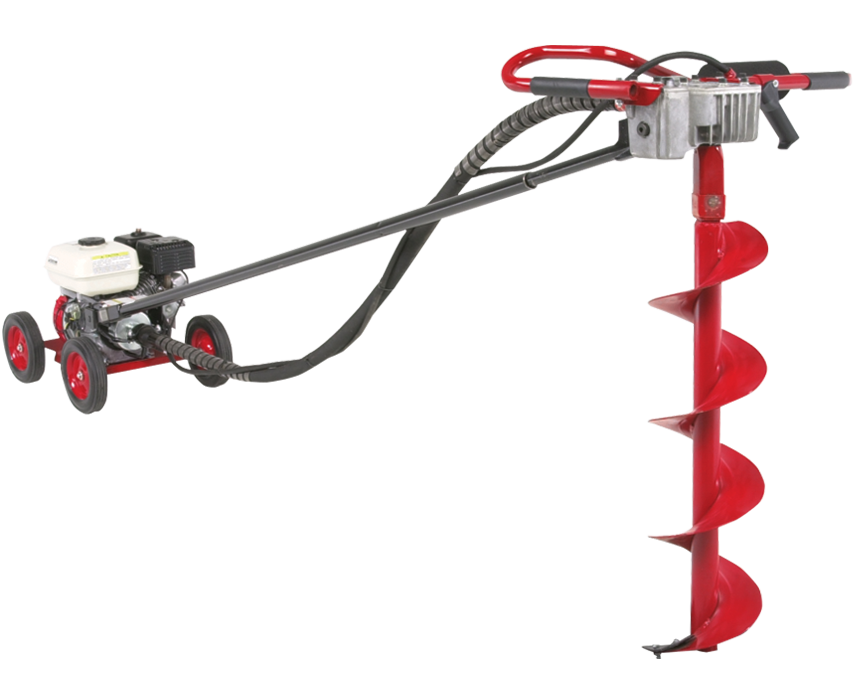

Mechanical Earth Drills

  • Lightweight, powerful, reliable
  • High-speed auger rotation digs holes quickly and cleanly
  • Torque-free digging eliminates kickback

Applications:

  • Fencing
  • Decks
  • Landscaping
  • Sign erection
  • Soil sampling
  • Horizontal boring

For over 50 years, the versatile Little Beaver Mechanical Earth Drill has been the #1 choice of rental store owners, fencing contractors, and other professionals who require a one-man auger that is safe and simple to operate. Thanks to our patented torque tube, we’ve eliminated the kickback found in competitive augers, making one-man drilling safe and productive.

Little Beaver horizontal boring unit drilling under sidewalkLittle Beaver’s horizontal boring options easily convert your earth drill into a cost effective horizontal boring machine. The sidewalk auger kit uses a 3″ auger and wiggle joint extension to bore up to 5′. The water drilling kit is used for horizontal distances up to 50′ with a diameter of 2, 3, or 4″.

Engineered to Work…And to Last

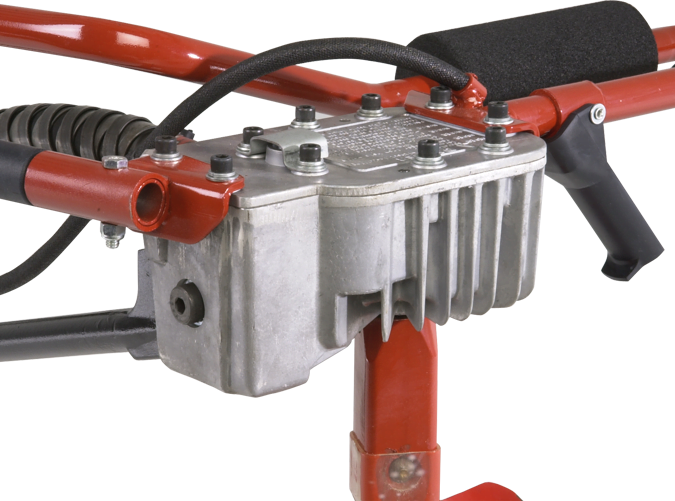

Closeup of the transmission

We build our own heavy-duty transmissions that feature o-ring seals, heat treated shafts and bearings mounted in an oil bath, as well as cooling fins for quick heat dissipation.
Engine on off switch
The engine throttle control and the on/off switch are conveniently located on the left handle. Padded handles are ergonomically designed for less fatiguing operation.

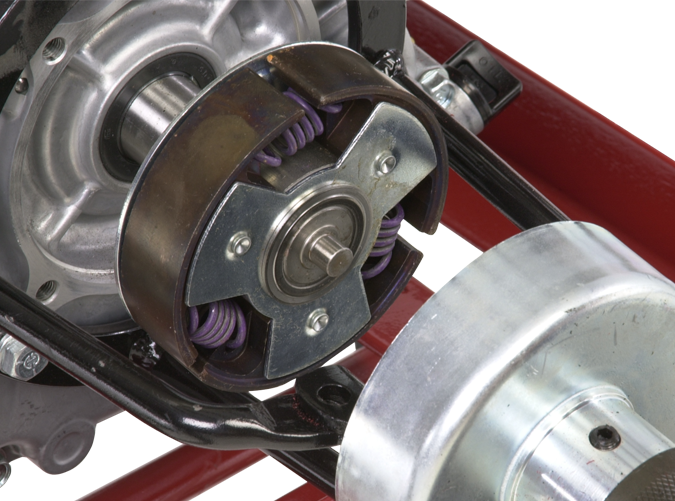

Exploded view of the centrifugal clutch

A reliable, centrifugal clutch slips when a buried object is encountered or the auger is overloaded. This protects the flexible drive cable and the transmission gears and shafts from damage.
Closeup of the snap button auger release
A convenient snap button holds the auger securely to the transmission adaptor and lets you easily connect or remove augers and extensions without pins or tools.

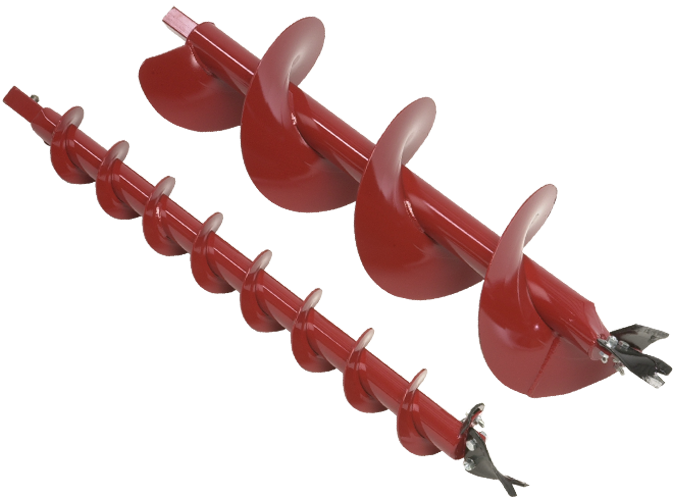

Wide vaerity of augers are available

Little Beaver offers a complete line of snap-on augers in both 36″ and 42″ lengths. Diameters range from 1.5″ to 16″. We also offer snap-on extensions, in both full flighted and tube configurations.
Little Beaver augers operate very fast
Little Beaver earth drills are incredibly fast. Operating at 360 RPM, our augers rotate much faster than competitive units. Not only does this increase your drilling productivity, but it also results in cleaner holes.

Choose Your Tip

Standard Auger Bit

Standard augers are equipped with hard-faced, replaceable points and cutting blades. For added value, most blades are reversible.

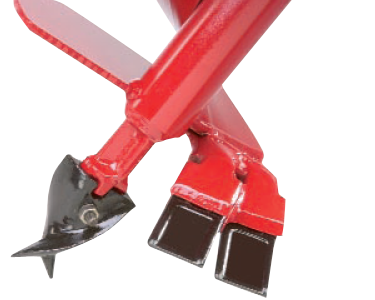

Heavy-Duty Auger bits

Heavy-duty blades quickly cut through rocky soils. These augers operate most efficiently at a slower RPM speed and are recommended for 20:1 or 13:1 gear ratios.

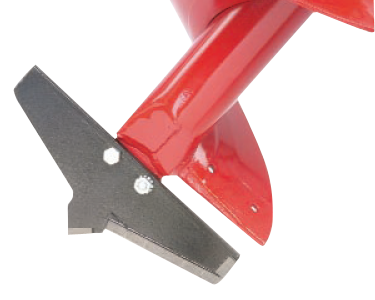

Carbide Auger Bits
When drilling hard clay, frozen ground, asphalt or hard pan soils, Little Beaver’s carbide blades are the solution. The carbide blade replaces both the standard point and cutting blade.

Carriage and Wheel Options

Pneumatic Wheel CartRick-sha Style Cart

Customize your Little Beaver with a variety of engine, wheel and carriage options. Both the MDL-5 and MDL-8 models are available with Honda OHV or Briggs & Stratton engines. 10″ pneumatic wheels are standard on MDL-8 models, and optional on 5.5 hp units. Engine protecting roll cages are optional on all models. With its 20″ semi-pneumatic wheels, the specially designed rick-sha carrier is ideal for navigating over the rough terrain often associated with geophysical job sites. A convenient pull handle and transmission cradle makes it easy to smoothly move the earth drill to your exact drilling location.

Specifications

MDL-5B MDL-5H MDL-8B MDL-8H
Engine brand /model B&S Vanguard OHV Honda GX160 OHV B&S Vanguard OHV Honda GX240 OHV
Engine horsepower 5.5 hp (4.8 hp net) 5.5 hp (4.8 hp net) 8.0 hp (7.9 hp net) 8.0 hp (7.9 hp net)
Oil alert system Std. Std. Std. Std.
Torque tube Std. Std. Std. Std.
Centrifugal clutch Std. Std. Std. Std.
7′ flexible drive shaft Std. Std. Std. Std.
Snap-on auger adaptor Std. Std. Std. Std.
Gear reduction ratio* 10:1 10:1 10:1 10:1
RPM* 360 360 360 360
Wheel size (inches)** 8 8 10 10
Wheel type** Semi-pneumatic Semi-pneumatic Pneumatic Pneumatic
Dry Shipping weight (lbs) 125 132 147 167

* Optional 13:1 or 20:1 gear reduction transmissions generate 277 or 180 RPM’s, respectively.
* * Optional 10″ pneumatic wheels are available for MDL-5B and MDL-5H.
