Kwik-Trench

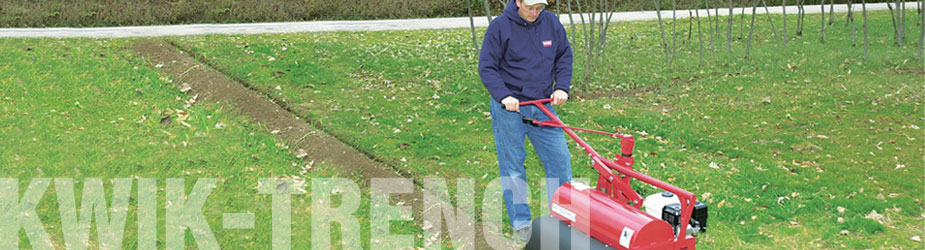

Little Beaver Kwik-Trench
Little Beaver Kwik-Trench trencher

The Fastest Mini-Trencher on the market

  • Trenches up to 30′ per minute
  • Cuts neat, clean trenches up to 12″ deep
  • Choice of 2 models

Applications:

  • Residential lawn sprinkler systems
  • Electronic dog fencing
  • Low voltage wiring (TV, cable, satellite dish)
  • Plumbing and drainage lines
  • Landscape edging
  • Silt fencing
  • Root pruning


For over 50 years, the Kwik-Trench Earth Saw has met the shallow trenching needs of rental stores, contractors and golf course superintendents. Thanks to it’s simple, push-forward design, the Kwik-Trench has proven itself as the fastest, easiest to use, and most economical mini-trencher on the market today. The Kwik-Trench’s compact size lets you get into areas inaccessible to full-size trenchers. And once at the jobsite, you’ll achieve cutting speeds of up to 30′ per minute.
Manual Crank A manual crank on belt-driven models infinitely controls your cutting depth (up to 12″ on model KT 2400) while a locking swivel wheel lets you cut straight trenches.

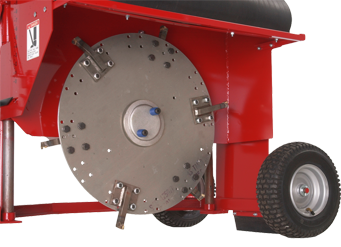

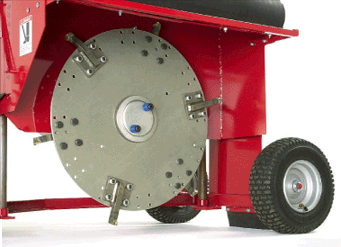

Kwik-Trench Blade and Cutting Teeth

Driven by triple v-belts, the cutter wheel rotates up to 800 rpm for fast, clean cutting. A slip clutch is built into the hub of the cutter wheel, protecting the engine and drive train from wear or damage. Trench width sizes from 1″– 4″, depending upon model, are obtained through various combinations of teeth styles and teeth mounting locations.
Closeup of teh Cutting teethHeat-treated, hardened steel teeth are carbide tipped for superior performance and extra long life.

Not only does the Kwik-Trench cut your trenching time, but it also cuts your backfill time. By making clean, narrow trenches and neatly depositing the spoil right next to the trench, both backfill and cleanup time are minimized. And while they’re not self-propelled, all Kwik-Trench earth saws feature pneumatic tires, so you won’t spend extra time repairing damaged turf caused by tracked machines or skid-steer loaders.


Little Beaver's Kwik-Trench ApplicationThe Kwik-Trench earth saw easily “saws” through these tough materials:

  • Compacted clay
  • Road fill
  • Asphalt
  • Tree roots, up to 10″ thick

Optional Tilt Bed Utility Trailer

For the ultimate in convenience, transport your Kwik-Trench on the model KT 2000 tilt bed utility trailer. This handy trailer securely carries all Kwik-Trench models and makes it simple to quickly move the Kwik-Trench from job to job.

  • Spring axles
  • 10 gauge diamond plate bed
  • 1,000 lb. load capacity
  • Axle lock and tie-downs
  • Fits 2″ towing balls

Specifications

KT 200B KT 2400B
Engine brand /model Honda GX160 OHV Honda GX240 OHV
Engine horsepower 5.5 hp (4.8 hp net) 8.0 hp (7.9 hp net)
Oil alert system Std. Std.
Blade Drive Triple V-belt Triple V-belt with automatic tensioner
Digging width* (inches) 1 – 3 1 – 4
Maximum digging depth (inches) 8 12
Depth gauge Standard Standard
Cutting teeth (number) KTSXRT – 4/KTSBP – 8 KTSXRT – 12/KTSBP – 16
Cutting teeth (type) Carbide tipped Carbide tipped
Dimensions
Length (inches) 57 1/4 72
Width (inches) 31 36
Height (inches) 40 40
Dry Shipping weight (lbs.) 280 430
