Little Beaver is designed to do more than just drill vertical holes. We manufacture a number of kits, accessories and adapters that turn your Little Beaver into a horizontal boring machine, foundation repair tool, or anchor driver. You can use your Little Beaver to drill holes in wood or concrete. And by using special adapters, you can even use your current brand of earth drill or auger in conjunction with Little Beaver’s earth drills and augers.
Little Beaver makes two types of horizontal boring kits that turn your Little Beaver earth drill into a powerful and cost effective horizontal boring machine.

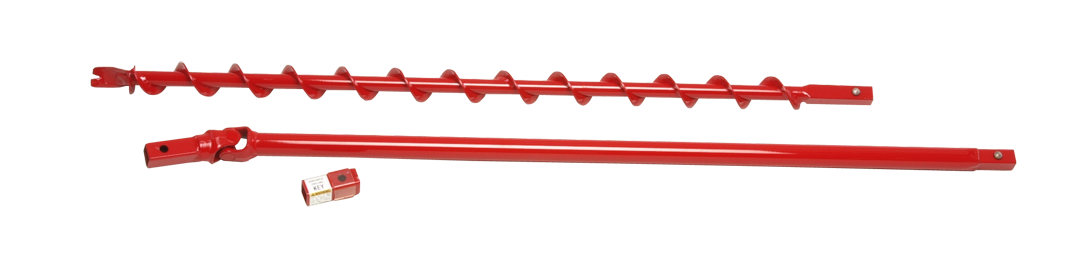

Sidewalk Auger Kit
2. 2″x 5′ wiggle joint extension
3. Horizontal drill key
Drill Bit Size: 3″
The Sidewalk Auger Kit uses a 3″ diameter auger and wiggle joint extension to quickly bore under sidewalks up to 5′ long. Since the torque tube is not used with this kit, a horizontal drill key is included to bypass the engine kill switch.
Water Drilling Kit
2. Water swivel assembly
3. Water swivel adapter
4. Horizontal drill key
Drill Bit Size: 2″ 3″ 4″
The Water Drilling Kit is used for horizontal boring under driveways or parking lots up to a distance of 50′. The kit consists of a water drill bit, swivel adapter, swivel assembly and a horizontal drill key. To complete the kit, you will need a garden hose, 3/4″ Schedule 80 water pipe and 3/4″ pipe couplings. Once the kit has been assembled and starter trenches have been dug, boring can begin. Water from your garden hose or pump runs through the water swivel, water pipe and out the end of the drill bit, flushing the cuttings from the bore hole. Pipe and cup links not included.
Drill Chuck Attachment
Convert any Little Beaver earth drill into a powerful wood or concrete drill with an efficient drill chuck attachment. The 5/8″ capacity chuck accommodates standard wood or masonry bits up to 1.5″ in diameter and drills clean holes in fence posts, wooden decking, concrete and masonry.

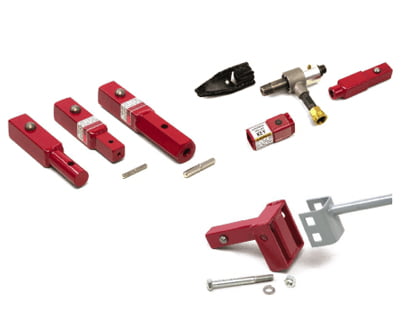

Other Brand Earth Drill And Auger Adapters
To minimize your equipment investment, Little Beaver offers low cost adapters that allow the continued use of other brands of earth drills or augers. As these other brands reach the end of their useful life, you can then cost effectively replace them with Little Beaver.
Little Beaver Earth Drills / Other Brand Augers
Do you have a sizable investment in other brands of augers but want to enjoy the advantages of Little Beaver one-man earth drills? These ingenious adapters make your current auger brand compatible with Little Beaver earth drills.
1. General brand augers (1″ round bar connection) #9051-GEN
2. Ground Hog brand augers (7/8″ square bar connection) #9051-GHAS
3. General brand augers (1-3/8″ hex bar connection) #9051-GENS
Little Beaver Augers / Other Brand Earth Drills
If you own another brand of earth drill, but are looking for the industry’s largest selection of augers, these handy adapters are for you. These adapters make any Little Beaver auger compatible with your current brand of earth drill.
4. Ground Hog brand earth drills (7/8″ square drive) #9051-GHLB
5. General brand earth drills* (1-3/8″ hex drive) #9052-GEN
* Must turn in clockwise direction

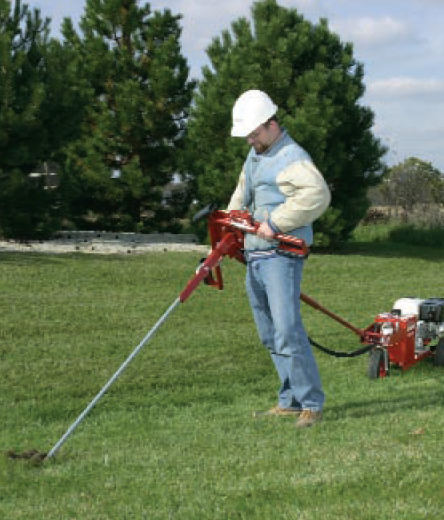

Your Little Beaver Hydraulic earth drill can do much more than just dig holes! These handy anchoring devices let you use your Little Beaver Hydraulic earth drill to quickly drive tent stakes, anchor mobile homes or anchor utility stakes.
Tent Stake Driver #30323
Since many equipment rental stores are also party rental stores, this ingenious tent stake driver lets you use your Little Beaver earth drills to drive tent stakes for rapid tent set-up.(60 RPM only, not recommended for mechanical earth drills)
Mobile Home Anchor #30320
Securing mobile homes to a foundation is easy with this convenient mobile home anchor. Pair this anchor with a high-torque anchor handle for the ultimate mobile home anchoring system.(60 RPM only, not recommended for mechanical earth drills)
Utility Anchor #30322
Driving utility anchors is made easier with this special adapter. With Little Beaver’s anchor handle, hydraulic earth drill and torque tube, one-man installation of utility anchors is now possible. (60 RPM only, not recommended for mechanical earth drills)
When deeper holes are required, the tripod kit provides controlled drilling and easy auger removal. Using a 4″ auger and extensions, holes up to 35′ can be easily drilled. Designed for soil sampling and geophysical work, the Tripod Kit features fast set-up, a hand winch, and is compatible with the 11 hp Hydraulic earth drill and one or two-man handles.
Foundation Repair Tools
Drilling foundation repair holes is made easy when you combine a Little Beaver earth drill with either a bucket auger or a bell tool.
Ideal for soft soils, the bucket auger reduces side friction, allowing the drilling of deeper holes. When filled, the bucket must be removed from the hole and emptied. The bucket auger is connected with a 3/4″ or 1″ steel threaded pipe, depending on auger size.
Sizes: 4″ 6″ 8″ 10″ 12″
After a 10–12″ diameter hole has been drilled, the bell tool is used to ream out the bottom of the hole. The bell tool is connected by a 4′ pinned extension. Once in position, the bell tool’s wings flare out, reaming out up to a 30″ footing at the bottom of the pier hole. When removing the bell tool from the hole, the wings retract, capturing the spoil within the confines of the bell tool.
